These switches will find wide application like in lighting, small FHP motor control, instrument selection, heating, air conditioning, switchgears, circuit breakers, auxiliary switching, D. C. breaking, machine tools, programme control, voltage stabilizers, inverter, converter, D. C. power plants, appliances like vacuum cleaners, washing and laundry machines, refrigeration equipments etc.

Optional Attachments, Executions, Accessories Etc. :

1. Available in plastic moulded or sheet steel enclosures fitted with ball handle for
   motor control application
2. Base mounting with door interlocking attachment.
3. Spring Return in one or both sides of OFF position for momentary contacts and
   inching operation. Also with combination of Stayput and momentary contacts.
4. Recessed yellow cup with red knob combination for padlocking.
5. Centre keylock assembly with key removable in any position for un-authorised operation

Dimensional drawings available on request.

Additional Features Mounting, Colour &. Finish :
As a standard 48 x 48mm Black Nylon moulded Escutcheon fitted with Silver white anodised aluminum plate printed with Black legends and Black wing knob are supplied. Yellow Escutcheon printed with Black letters and Red knob is available as optional. Any other colour finish for knob, Escuetion, Lettering etc too are available on request. 6.35mm wide push-on tabs are available fixed on to the terminals, for quick connection at extra cost. Mounting of the switch too can be varied as per customers requirement.

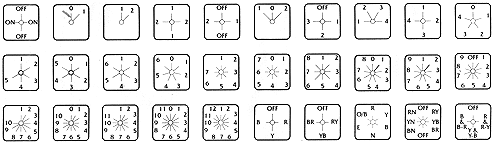

STANDARD SWITCHING SEQUENCES :
Single, Two, Three and Four Pole Switches of Switching sequences like OFF/ON, changeover no OFF and with OFF, 3 way with no OFF and with OFF, 4 way no OFF and with OFF, Five way no OFF and with OFF, 6 way no OFF and with OFF 7- way no OFF and with OFF, 8- way no OFF and with OFF, 9 and 10 way without and with OFF, 11 - way without and with OFF and 12 way no OFF are standard. Multipole switches are possible upto the limit of twelve packets build-up. Switches are available in 90°, 60°, 45° and 30° indexing.
