Toggle Switches

Reco toggle switches - RT Series, are manufactured incorporating latest technology and using selected raw materials for optimum performance, reliability and trouble free service. Reco toggle switches are precisioned in design and rugged in construction to meet the most arduous Industrial-Commercial-Professional-Defence applications.

Essential features of these switches are:
Body : Moulded Plastic anti-tracking quality
Mechanism : Rocker type — slow make, slow break.
Contacts : Silver alloy and ncn ferrous material.
Operating Lever (Dolly) : Sealed for protection against dust.
Finish : Metal Parts suitably plated.
Mounting : Single hole threaded bush type with requisite hardware.
Optional Accessories :
Legend Plates : With Standard/Special markings.
Cover Nuts : Dome, Ring, Cap suitably finished.
Lever Shapes : Ball, Bat, Tipped etc.

Some typical applications :

Electronic Instruments & Equipments	Electro Medical Equipment
Computers & Business Machines	Elevators
Process Controls	Rectifier Equipment
Telecommunication Equipments	Machine tools
Instrumentation	Marine
Control Panels	Transport
Aircrafts	Domestic Appliances
Cine Equipment	Automation

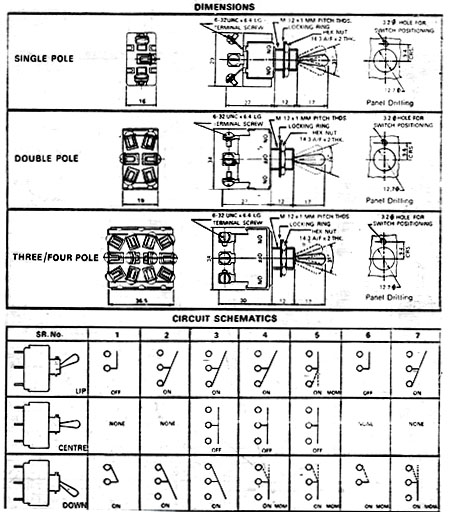

Technical Details :

Rating :	10 Amps - 250 / 440 V AC Also in MRT Series, Details on request
	15 Amps - 28 V DC 15 Amps - 250 / 440 V AC
	For all three types of terminals - Solder, Screw & Push-On
Range :	Single, Double, Triple and Four poles
Circuit :	Single Throw (OFF-ON) Double Throw (2 way) with
	Stay put (maintained) and Momentary (spring return) contacts
Terminals :	Screw type (A), Solder tag (B) and Push-On tab(C)
Specifications :	Switches comply with IS: 3452.
	Also to Defence Specifications (Details on request)
Mounting :	Single hole type on centre bush threaded 12 mm with requisite
	two fixings nuts and one lock washer supplied with switches
Panel Thickness :	Upto 5 mm. (Max.)
Operating Force :	4.5 kg (Max.)
Temperature Range :	-40°C to + 70°C
Life Expectancy :	Electrical— 50,000 operations Mechanical - 1,00,000 operations
Contact Resistance :	10 m. Ohms (Max.)
Insulation Resistance :	100 M. Ohms (Min.)

Weight : (approx.)

Single Pole : 30 grams
Double Pole : 40 grams
Three/Four Pole : 60 grams

RT Series
10 AMPS AC	250 V 1-2 POLLS	440 V 3-4 POLLS

MRT Series
15 AMPS AC	250 V 1-2 POLLS	440 V 3-4 POLLS

DRT Series
15 AMPS 250 V. 440 V	FOR DEFENCE APPLICATIONS DETAILS ON REQUEST.

35 RT Series
35 AMPS AC	250 V 1 POLLS

SWITCHING CIRCUITRY

CATALOGUE TYPE NOs.

Poles

Sr. No.

Sequence

Nos.

Positions

Rating

Terminals

Rating

Terminals

Rating

Terminals

Up	Centre	Down

10 AMPS RT Series

Solder

Screw

Push-On

15 AMPS MRT Series

Solder

Screw

Push-On

35 AMPS RT Series

Solder

Screw

Push-On

1

OFF-ON

2

OFF

NONE

ON

RT 121

A

B

C

MRT 121

A

B.

C

35 RT

-

B

-

2

2 WAY

2

ON

NONE

ON

RT 132

A

B

C

MRT 132

A

B

C

35 RT

-

B

-

3

2 WAY OFF

3

ON

OFF

ON

RT 133

A

B

C

MRT 133

A

B

C

35 RT

-

B

-

4

2 WAY OFF*

3

ON

OFF

ON *

RT 134

A

B

C

MRT 134

A

B

C

35 RT

-

B

-

5

2 WAY OFF*

3

*0N

OFF

ON *

RT 135

A

B

C

MRT 135

A

B

C

35 RT

-

B

-

6

OFF-ON*

2

OFF

NONE

ON *

RT126

A

B

C

MRT 126

A

B

C

35 RT

-

B

-

7

2 WAY*

2

ON

NONE

ON *

RT 137

A

B

C

MRT 137

A

B

C

35 RT

-

B

-

1

OFF-ON

2

OFF

NONE

ON

RT 241

A

B

C

MRT 241

A

B

C

-

-

-

-

2

2 WAY

2

ON

NONE

ON

RT 262

A

B

C

MRT 262

A

B

C

-

-

-

-

3

2 WAY OFF

3

ON

OFF

ON

RT 263

A

B

C

MRT 263

A

B

C

-

-

-

-

4

2 WAY OFF*

3

ON

OFF

ON *

RT 264

A

B

C

MRT 264

A

B

C

-

-

-

-

5

2 WAY OFF*

3

*0N

OFF

ON *

RT 265

A

8

C

MRT 265

A

B

C

-

-

-

-

6

OFF-ON*

2

OFF

NONE

ON *

RT 246

A

B

C

MRT 246

A

B

C

-

-

-

-

7

2 WAY*

2

ON

NONE

ON *

RT 267

A

B

C

MRT 267

A

B

C

-

-

-

-

1

OFF-ON

2

OFF

NONE

ON

RT 361

A

B

C

MRT 361

A

B

C

-

-

-

-

2

2 WAY

2

ON

NONE

ON

RT 392

A

B

C

MRT 392

A

B

C

-

-

-

-

3

2 WAY OFF

3

ON

OFF

ON

RT 393

A

B

C

MRT 393

A

B

C

-

-

-

-

4

2 WAY OFF*

3

ON

OFF

ON *

RT 394

A

B

C

MRT 394

A

B

C

-

-

-

-

5

2 WAY OFF *

3

*0N

OFF

ON *

RT 395

A

B

C

MRT 395

A

B

C

-

-

-

-

6

OFF-ON*

2

OFF

NONE

ON *

RT 366

A

B

C

MRT 366

A

B

C

-

-

-

-

7

2 WAY*

2

ON

NONE

ON *

RT 397

A

B

C

MRT 397

A

B

C

-

-

-

-

1

OFF-ON

2

OFF

NONE

ON

RT 481

A

B

C

MRT 481

A

B

C

-

-

-

-

2

2 WAY

2

ON

NONE

ON

RT 4122

A

B

C

MRT 4122

A

B

C

-

-

-

-

3

2 WAY OFF

3

ON

OFF

ON

RT 4123

A

B

C

MRT 4123

A

B

C

-

-

-

-

4

2 WAY OFF*

3

ON

OFF

ON *

RT 4124

A

B

C

MRT 4124

A

B

C

-

-

-

-

5

2 WAY OFF*

3

*0N

OFF

ON *

RT 4125

A

B

C

MRT 4125

A

B

C

-

-

-

-

6

OFF-ON*

2

OFF

NONE

ON *

RT 486

A

B

C

MRT 486

A

B

C

-

-

-

-

7

2 WAY*

2

ON

NONE

ON *

RT 4127

A

B

C

MRT 4127

A

B

C

-

-

-

-
